Soft Drink & Water Filling Machine

Soft Drink & Water Filling Machine

Specifications

Weight 100-1000kg, 1000-2000kg, 2000-4000kg, 4000-6000kg
Voltage 110V, 220V, 380V, 440V
Condition New
Usage Filling Machine
Automatic Grade Automatic
Power 3-5kw, 5-7kw, 7-9kw, 9-12kw
Driven Type Electric

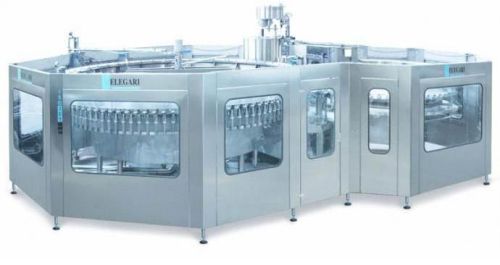

Soft Drink & Water Filling Machine is designed for filling carbonated water and soft drinks into bottles. Soft Drink & Water Filling Machine can also works at ambient temperatures with innovative special features. Filling takes place at high speed. Size change-over is not necessary for PET containers - only for glass ones.

Highlights :

  • High filling performance
  • Precise filling levels
  • No size change-over for PET bottles
  • User-friendly and low-maintenance


Innovative logic :

  • Decompression is collectorized in a single point.
  • The breaking of a bottle automatically triggers the closing of the filling valve, thereby reducing the typical loss of product and CO2 to a minimum.


Filling :

  • The high flow capacity filling valves are reliable, easy to disassemble and of extremely simple design.
  • Due to the low number of mobile parts and total absence of dynamic seals, wear problems and maintenance operations have been reduced to a minimum and an extremely efficacious sanitation cycle has been made possible.


No more size changeover for PET bottles :

  • The bottles are conveyed at all times, during transfer from one phase to the next, by the â��neckâ�� (Melegari Manghi's patent).
  • For this reason, it is no longer necessary to replace star wheels and guides, nor to make height adjustments on all of the machines making up the filling block.


Sanitation :

  • The tank, filling valves and other product contact parts are mirror-polished and slightly tilted to safeguard against dirt and residue and facilitate washing and draining, to be carried out using hot or cold liquid solutions.
  • For PET machine versions, semiautomatic dummy bottles are available on request.


Standard Characteristics :

  • Output : 1500÷100,000 bph
  • N° filling valves : 12÷140
  • Processable bottles : PET - Glass
  • Processable bottles (h) : 140÷340
  • Processable bottles (Ã�) : 48÷115
  • Operator panel : Touch Screen
  • Product contact parts : INOX
  • Temperature : ambient


Accessories on request :

  • Stainless steel base
  • Automatic centralized lubrication
  • Product contact parts in AISI 316 steel
  • Enclosed chamber with positive pressure
  • Digital bottle counter
